Integrated calorimeter / 32
- Connect primary and secondary meter through RS-485 interface, normal cable replaces special cable, transmission distance up to 1000m.
Features
• Far Transmission distance and easy networking
Connect primary and secondary meter through RS-485 interface, normal cable replaces special cable, transmission distance up to 1000m . convenient and quick network setup Solve the problems of high cost of special cable, poor anti-interference, short transmission distance etc.
• Wide measuring range
Several types transducer for selection, measuring pipe size from DN 15mm to DN 6000mm
• Chinese or English menu
Different version UFM can support Chinese or English display, easy to operate
• High Reliability
Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.
• Powerful Recording Function
1. Automatically record the day totalizer data of the last 64 days and month totalizer data of the last 32 months (2 years), add day/month/year record;
2. Read of the day/month/year totalizer data with MODBUS protocol.
Optional Secondary meter
|
|
|
|
|
Wall-mount(LRC-2000FW)
|
Panel-mount (LRC-2000FS)
|
Explosion-proof (LRC-2000FD)
|
General Specification
|
Optional Transduers |
Model |
Measuring Range |
Liquid Temperature |
Accuracy |
|
|
Clamp-on |
TS-1(small size) |
LRC-2000FNB1 |
DN15 -100mm |
-30C ° ∼ 90C ° |
±2% |
|
|
TM-1(medium size) |
LRC-2000FNB2 |
DN50 -1000mm |
||
|
TL-1(large size) |
LRC-2000FNB3 |
DN300 -6000mm |
|||
|
High-tem clamp-on |
HTS-1(small size) |
LRC-2000FNB4 |
DN15 -100mm |
-30C ° ∼ 160C ° |
|
|
|
HTM-1(medium size) |
LRC-2000FNB5 |
DN50 -1000mm |
||
|
Insertion |
TC-1(standard) |
LRC-2000FNC1 |
DN80 -6000mm |
-40C ° ∼ 160C ° |
|
|
|
TLC-2(lengthen) |
LRC-2000FNC2 |
|||
|
Prover Section |
Prover Section |
LRC-2000FNG |
DN15 -1000mm |
-40C ° ∼ 160C ° |
|
|
|
|||||
|
Power Supply |
Main unit: 8-36VDC , long distance display meter: AC220V or DC24V |
||||
|
Input |
3 channel 4-20mA analog input, 2 channel Tri-wire resistance |
||||
|
Output |
Isolation RS-485 output, 2 channel isolation OCT |
||||
|
Communication Protocols |
Compatible with MODBUS, METER-BUS protocol, Fuji extended |
||||
Structure of Unified Calorimeter

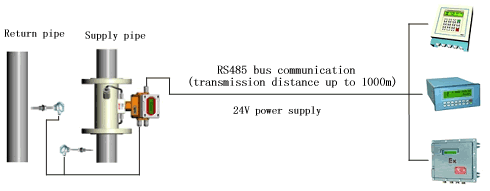

Single point measuring

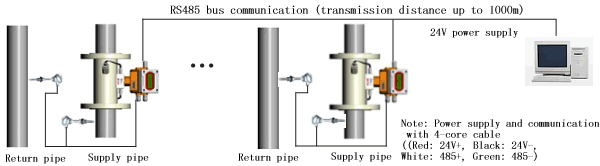

Network structure (For remote monitor and data collector
